Heavy Duty Vibratory Plate

SKU: N/A Categories: ,

Calculator Icon

To determine amplitude for a reversible plate use:
Vibratory Plate Amplitude Calculator

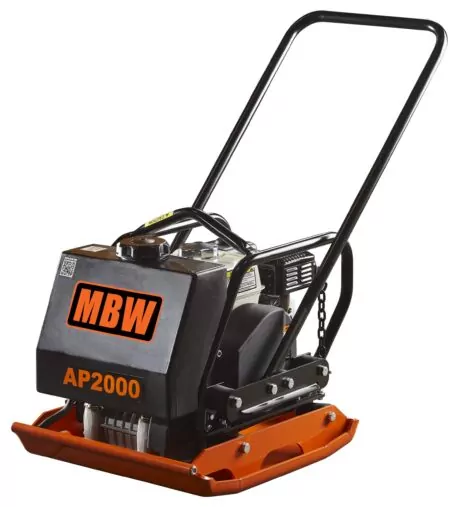

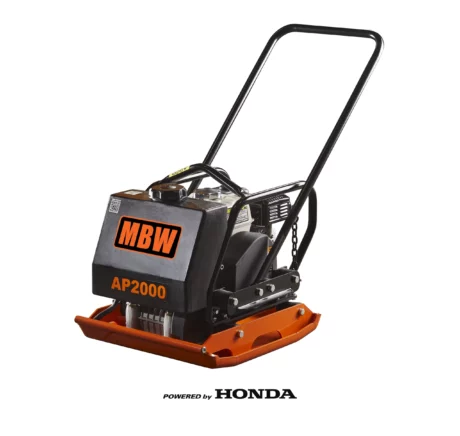

MBW’s AP2000 was the first vibratory plate compactor specifically designed for asphalt applications. Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt.

Further, the mechanical construction of the AP2000 is specific to this very demanding application. Stress relieved steel plate housings are crack resistant and provide long wear. Aluminum exciter housing dissipates heat rapidly and custom lubricants preserve bearing and seal integrity. The self cleaning plate prevents dirt build-up.

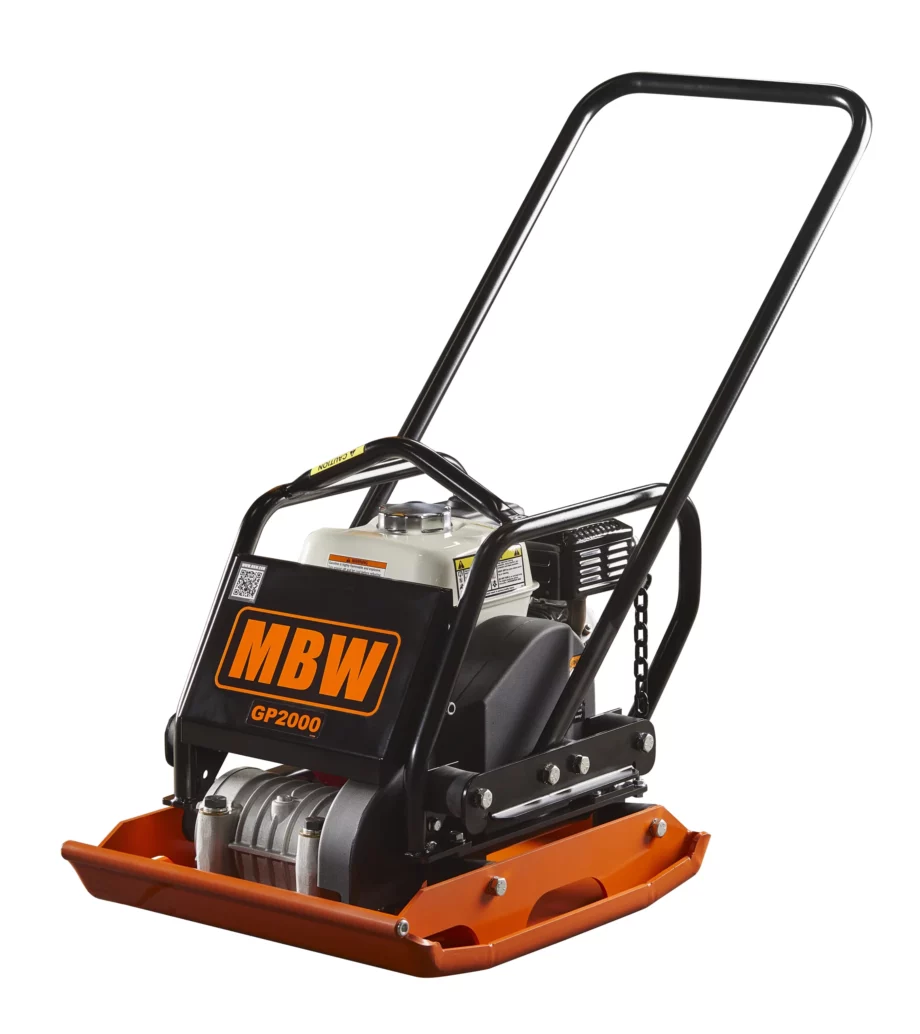

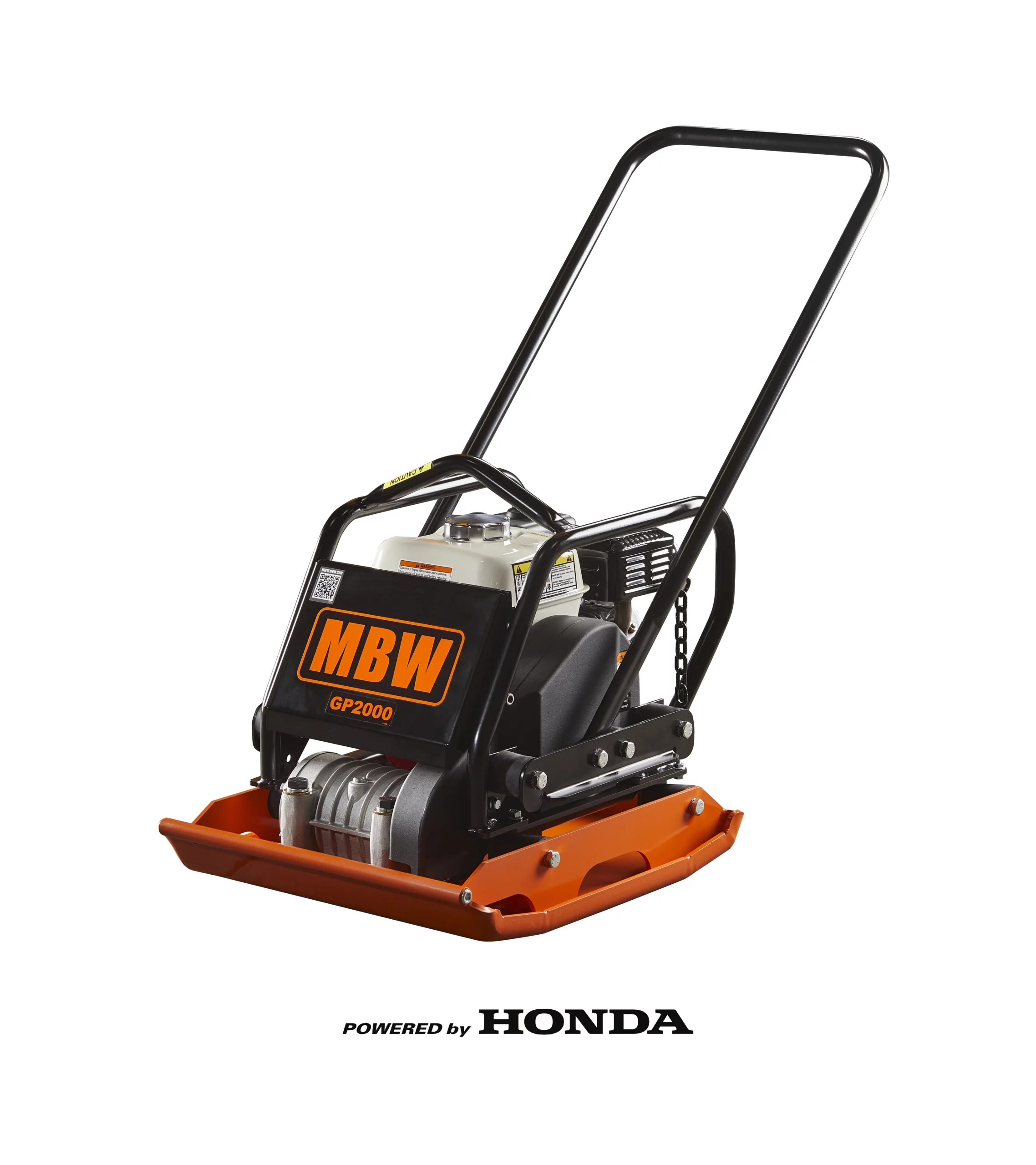

The GP2000 is a permutation of the AP2000 where frequency, amplitude, centrifugal force and mass are adjusted to provide optimal productivity in the compaction of sands and gravel. The GP2000 is capable of achieving excellent densities on lifts of granular soils up to 12″ (31 cm)*.

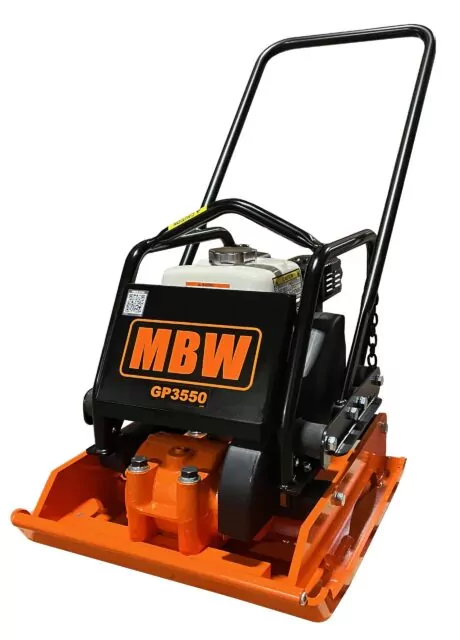

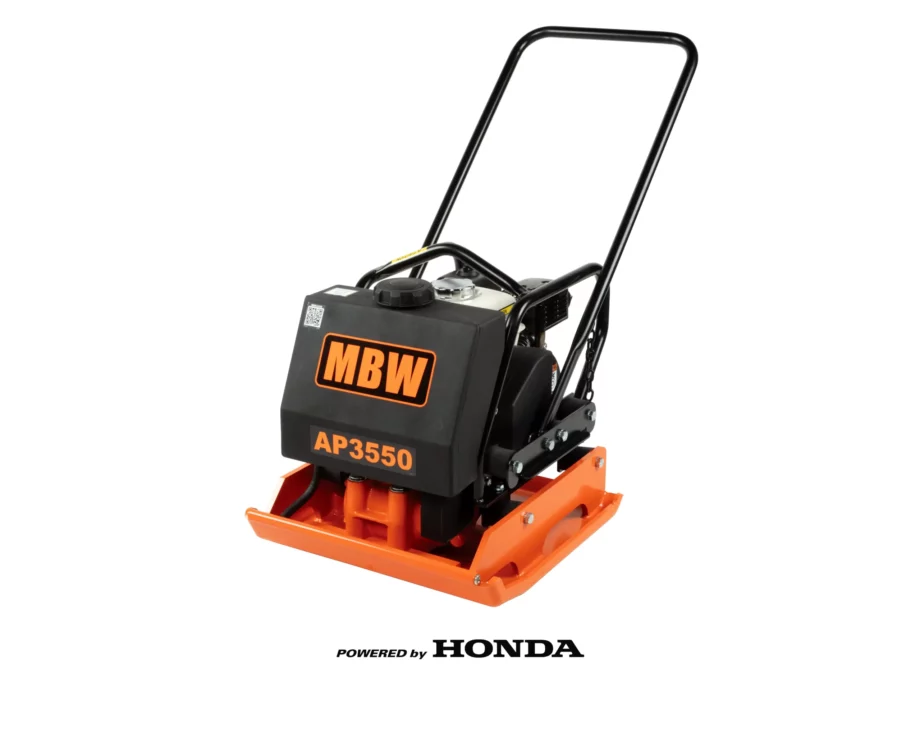

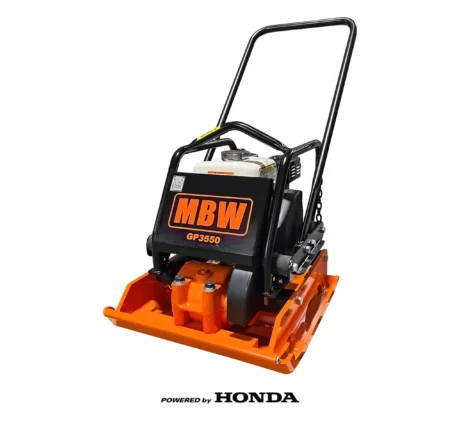

The GP3550 is a high production compactor that will run decades with reasonable maintenance. The deck features a full roll cage as standard equipment with provisions for a water tank for asphalt compaction on AP3550. The base plate is self-cleaning with an open sided plate design that allows material to flow out and away from the belt/pulley assembly during operation. Both models provide reduced hand/arm vibration, full roll cage protection, enhanced amplitude, faster travel speed and updated yet rugged appearance.

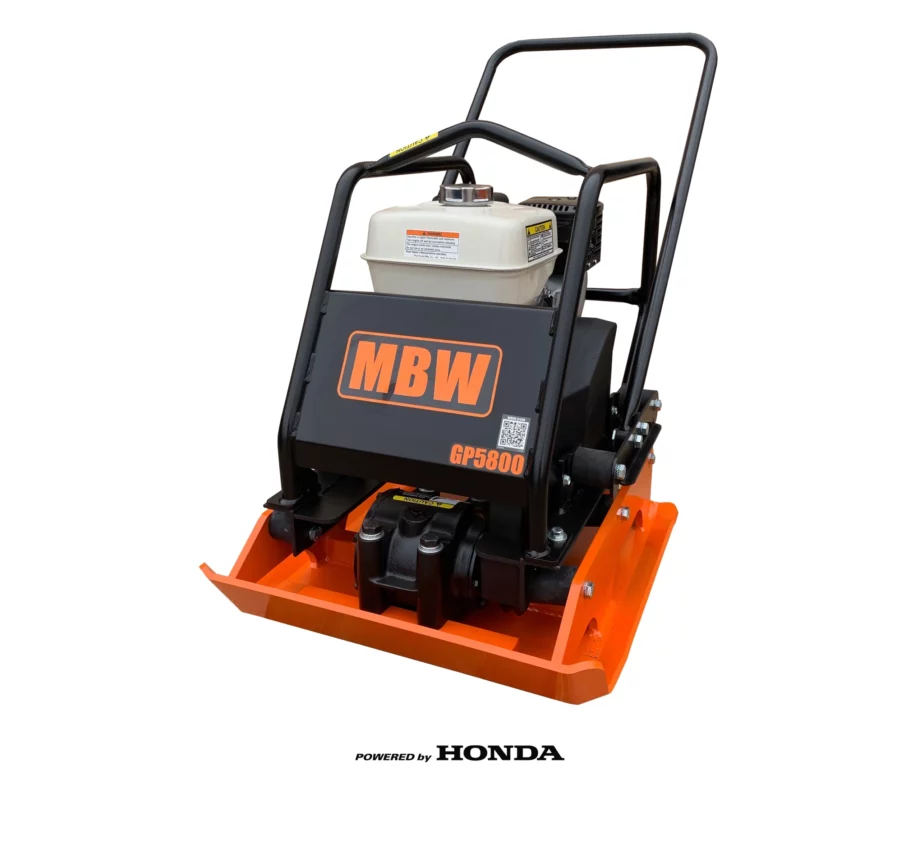

The GP5800 is an upgrade of model GP5500. GP5800 maintains its predecessor’s outstanding performance characteristics while improving the design in terms of ergonomics, ease of service and product life expectations. Among these are a removable, easily serviced exciter assembly, superior suspension for improved engine isolation, lower hand/arm vibration and standard protective cage surrounding engine. This high production compactor travels up to 130 ft/min, generates .94 inch amplitude for deep penetration of backfill materials and is unmatched on mid-sized to large commercial and infrastructure applications.

Plate Size WxL

20 x 22 in (51 x 56 cm), 21 x 22 in (53 x 56 cm), 23 x 24 in (58 x 61 cm)

Water Tank Capacity

3 gal (11.3 l), No Water Tank

Engine Option

Honda GX160 (163 cm3), Honda GX270

Operating Weight

165 lb (75 kg), 226 lbs (103 kg), 288 lb (131 kg), No Water 168 lb (76 kg) Full Water 193 lb (88 kg), No Water 229 lbs (104 kg) Full Water 254 lbs (115 kg)

Amplitude

0.054 in (1.37 mm), 0.058 in (1.47 mm), 0.063 in (1.59 mm), No Water .061 in (1.56 mm) Full Water .055 in (1.39 mm)

Centrifugal Force**

1920 lb (8.5 kN), 2000 lb (8.9 kN), 2780 lb (12.6 kN)

Exciter Speed

3000 rpm, 5240 vpm, 5350 vpm

Compaction Depth*

Up to 10 in (25 cm), Up to 18 in (45 cm), Up to 24 in (61 cm)

Travel Speed

Up to 68 ft/min (21 m/min), Up to 75 ft/min (23 m/min), Up to 83 ft/min (25 m/min)

Compaction Area

5395 sqft/h (501 sqm/h), 5440 sqft/h (505 sqm/h), 6750 sqft/h (627 sqm/h)

Specifications
AP2000
GP2000
AP3550
GP3550
GP5800
Plate Size WxL
20 x 22 in (51 x 56 cm)
20 x 22 (51 x 56 cm)
21 x 22 in (53 x 56 cm)
21 x 22 in (53 x 56 cm)
23 x 24 in (58 x 61 cm)
Operating Weight
No Water
168 lbs (76 kg)
Full Water
193 lbs (88 kg)
165 lbs (75 kg)
No Water
229 lbs (104 kg)
Full Water
254 lbs (115 kg)
226 lbs (103 kg)
289 lbs (131 kg)
Engine Option
Honda GX160
Honda GX160
Honda GX160
Honda GX160
Honda GX160
Amplitude
No Water
.082 in (2.08 mm)
Full Water
.071 in (1.80 mm)
165 lbs (75 kg)
No Water
.086 in (2.19 mm)
Full Water
.078 in (1.98 mm)
.087 in (2.2 m)
.094 in (2.39 mm)
Centrifugal Force**
2475 lbs (11 kN)
3250 lbs (14.5 kN)
3550 lbs (15.9 kN)
3550 lbs (15.9 kN)
5800 lbs (25.8 kN)
Exciter Speed
4400 vpm
5050 vpm
4400 vpm
4400 vpm
4800 vpm
Compaction Depth*
Up to 12 in (31 cm)
Up to 12 in (31 cm)
Up to 18 in (46 cm)
Up to 18 in (46 cm)
Up to 20 in (51 cm)
Travel Speed
Up to 90 ft/min
(27 m/min)
Up to 120 ft/min
(37 m/min)
Up to 110 ft/min
(34 m/min)
Up to 110 ft/min
(34 m/min)
Up to 130 ft/min
(39.6 m/min)
Compaction Area
9000 ft²/hr
(836 m²/hr)
12000 ft²/hr
(1115 m²/hr)
11550 ft²/hr
(1073 m²/hr)
11550 ft²/hr
(1073 m²/hr)
14950 ft²/hr
(1389 m²/hr)
Water Tank Capacity
3 gal (11.3 l)
N/A
3 gal (11.3 l)
N/A
Add New

*Clean sand, optimum moisture. MBW recommends that lifts not exceed 12″
**Centrifugal Force is not a measure of compaction performance.
( ) Metric Measurements.
​Specifications subject to change without notice.


Vibratory Plates Product Brochure View File
GP/AP 2000 & 3550 Manual View File
GP5800 Manual View File
