Light Duty Vibratory Plate

SKU: N/A Categories: ,

Calculator Icon

To determine amplitude for a reversible plate use:
Vibratory Plate Amplitude Calculator

This series of economical vibratory plates – the 12, 15 & 18 – is portable and offers outstanding compaction performance. A patented suspension system places shock mounts predominantly in a shear mode at the high-amplitude front end of the plate, and in a compressive mode at the low-amplitude trailing end of the plate. This system reduces hand-arm vibration and better isolates all upper mass components, including the engine, from vibrations produced by the machine’s exciter. With amplitudes up to 0.061 inches, centrifugal force up to 2780 lbf, and travel speeds up to 83 feet per minute, these plates are ideal for confined areas of granular soils, including sands and gravels. They are also capable of achieving lift depths of up to 10 inches (28 cm).

These lightweight plates weighing 130 lbs (59 kg) to 178 lbs (81 kg) are easy to lift and maneuver about the job site. Accompanied by intense vibration, this series of plates are ideally suited as an economical option for small to medium compaction applications.

Weight N/A
Dimensions N/A
Engine Option

Honda GX120 (118 cm3), Honda GX160 (163 cm3)

Operating Weight

130 lb (60 kg), 139 lb (63 kg), 174 lb (79 kg), No Water 134 lb (61 kg) Full Water 152 lb (69 kg), No Water 143 lb (65 kg) Full Water 161 lb (73 kg), No Water 178 lb (81 kg) Full Water 200 lb (91 kg)

Plate Size WxL

13 x 22.5 in (33 x 57 cm), 16 x 22.5 in (40 x 57 cm), 18 x 22.5 in (46 x 57 cm)

Amplitude

0.054 in (1.37 mm), 0.058 in (1.47 mm), 0.063 in (1.59 mm), No Water .061 in (1.56 mm) Full Water .055 in (1.39 mm)

Centrifugal Force**

1920 lb (8.5 kN), 2000 lb (8.9 kN), 2780 lb (12.6 kN)

Exciter Speed

3000 rpm, 5240 vpm, 5350 vpm

Compaction Depth*

Up to 10 in (25 cm), Up to 18 in (45 cm), Up to 24 in (61 cm)

Travel Speed

Up to 68 ft/min (21 m/min), Up to 75 ft/min (23 m/min), Up to 83 ft/min (25 m/min)

Compaction Area

5395 sqft/h (501 sqm/h), 5440 sqft/h (505 sqm/h), 6750 sqft/h (627 sqm/h)

Water Tank Capacity

2.3 gal (8.7 l), No Water Tank

Specifications
GP12
GP15
GP18

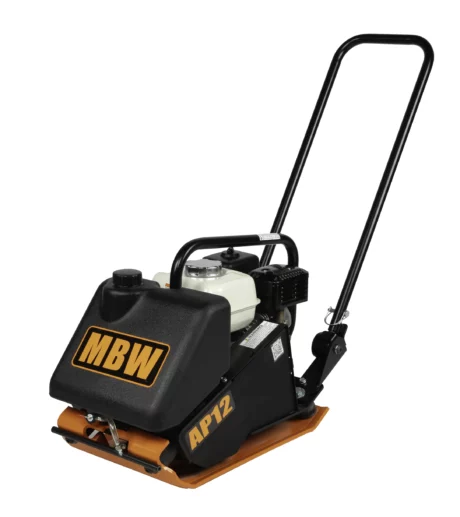

AP12

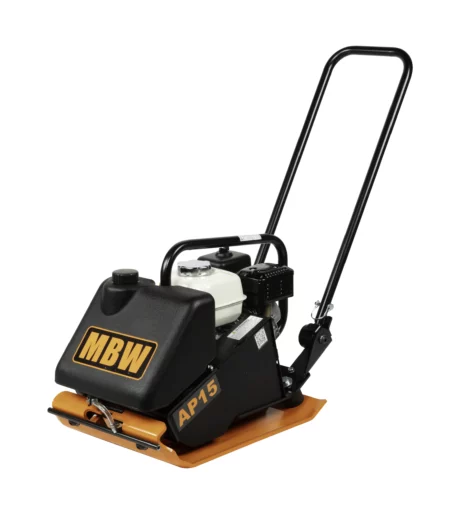

AP15
AP18
Plate Size WxL
13 x 22.5 in (33 x 57 cm)
16 x 22.5 in (40 x 57 cm)
18 x 22.5 in (46 x 57 cm)
13 x 22.5 in (33 x 57 cm)
16 x 22.5 in (40 x 57 cm)
18 x 22.5 in (46 x 57 cm)
Operating Weight
137 lbs (62 kg)
145 lbs (66 kg)
174 lbs (79 kg)
No Water
139 lbs (63 kg)
Full Water
158 lbs (72 kg)
No Water
 147 lbs (67 kg)
Full Water
166 lbs (75 kg)
No Water
183 lbs (83 kg)
Full Water
202 lbs (92 kg)
Engine Option
Honda GX120
Honda GX120
Honda GX160
Honda GX120
Honda GX120
Honda GX160
Amplitude
.055 in (1.40 mm)
.052 in (1.32 mm)
.063 in (1.59 mm)
.054 in (1.38 mm) *No Water
.051 in (1.30 mm) *No Water
.060 in (1.51) *No Water
Centrifugal Force**
1920 lbs (8.5 kN)
2000 lbs (8.9 kN)
2780 lbs (12.3 kN)
1920 lbs (8.5 kN)
2000 lbs (8.9 kN)
2780 lbs (12.3 kN)
Exciter Speed
5240 vpm
5350 vpm
5240 vpm
5240 vpm
5350 vpm
5240 vpm
Compaction Depth*
Up to 10 in (25 cm)
Up to 10 in (25 cm)
Up to 10 in (25 cm)
Up to 10 in (25 cm)
Up to 10 in (25 cm)
Up to 10 in (25 cm)
Travel Speed
Up to 83 ft/min
(25 m/min)
Up to 68 ft/min
(21 m/min)
Up to 75 ft/min
(23 m/min)
Up to 83 ft/min
(25 m/min)
Up to 68 ft/min
(21 m/min)
Up to 75 ft/min
(23 m/min)
Compaction Area
5395 ft²/hr
(501 m²/hr)
5440 ft²/hr
(505 m²/hr)
6750 ft²/hr
(627 m²/hr)
5395 ft²/hr
(501 m²/hr)
5440 ft²/hr
(505 m²/hr)
6750 ft²/hr
(627 m²/hr)
Water Tank Capacity
2.3 gal (8.7 l)
2.3 gal (8.7 l)
2.3 gal (8.7 l)

*Clean sand, optimum moisture. MBW recommends that lifts not exceed 12″
**Centrifugal Force is not a measure of compaction performance.
( ) Metric Measurements.
​Specifications subject to change without notice.


Vibratory Plates Product Brochure View File
GP/AP 12-18 Manual View File
