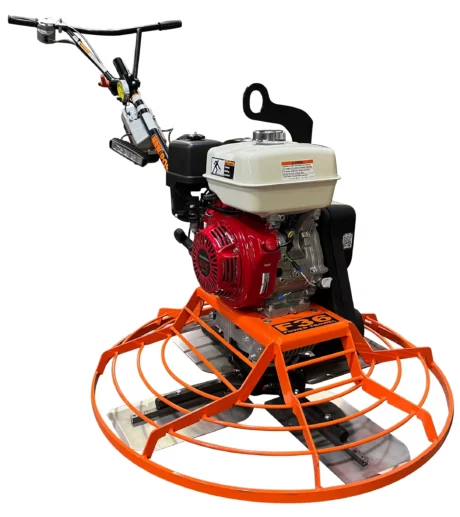

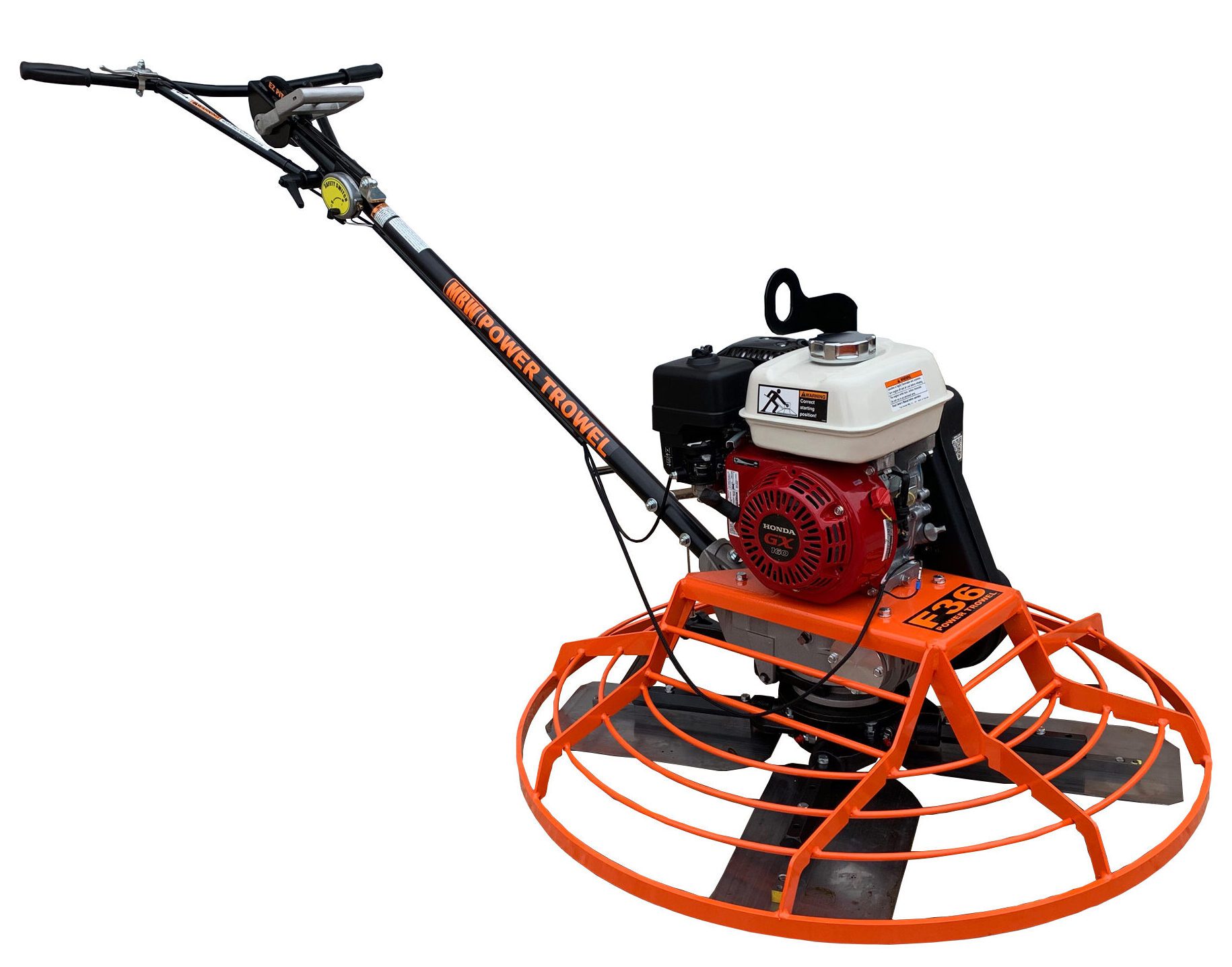

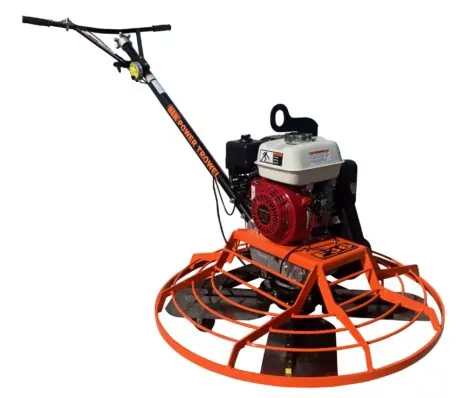

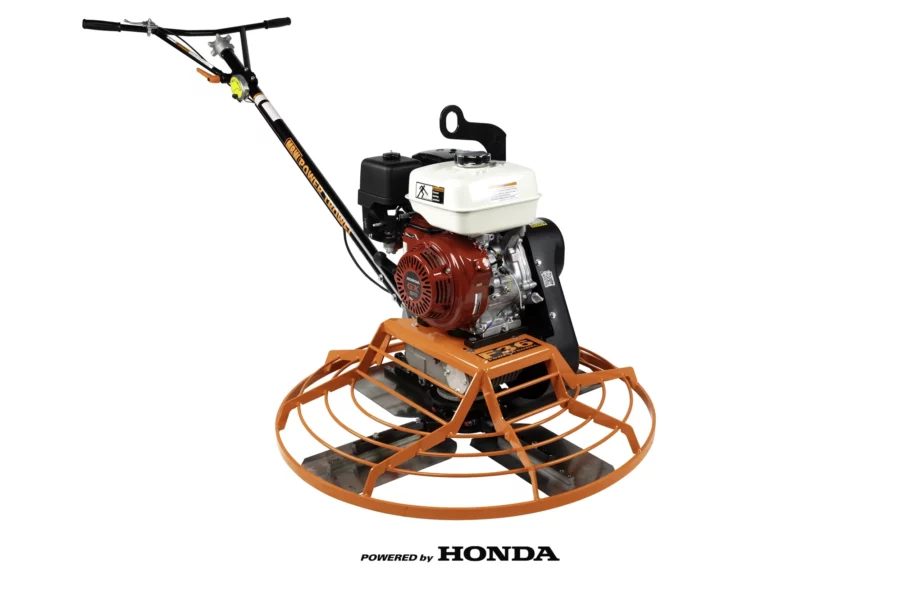

Walk-Behind Trowel F36

SKU: N/A Categories: ,

MBW’s 3-foot walk-behind trowels come in a variety of engine and handle options to suit all operators. With a gearbox machined and built in-house, these units are designed to last. Teflon inserts in the one-piece spider assembly ensure that the trowel arms will never seize up. The MBW F36 also utilizes hex trowel arms longer than the industry standard, resulting in less deflection.

Additionally, these units are offered in a High Torque version that allows for a larger window of adjustability on blade RPMs, both on the high and low ends.

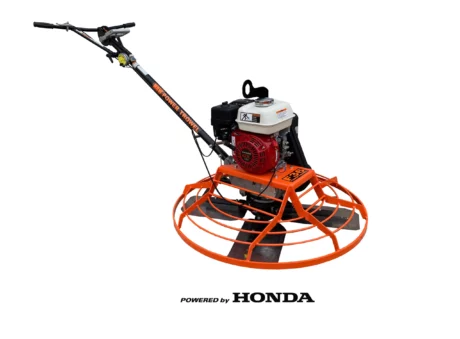

The F36 comes with four handle options: Standard, Low Vibration, EZ Pitch and the new Power Pitch.

Weight N/A
Engine Option

Honda GX160 (183 lb/83 kg), Honda GX270 (209 lb/95 kg), Honda GX270 High Torque (216 lb/98 kg)

Ring Operating Diameter

37.5 in (95 cm), 47.6 in (121 cm)

Trowel Speed

35-180 rpm High Torque, 70-135 rpm

Blade Sweep Dia

35.5 in (90 cm)

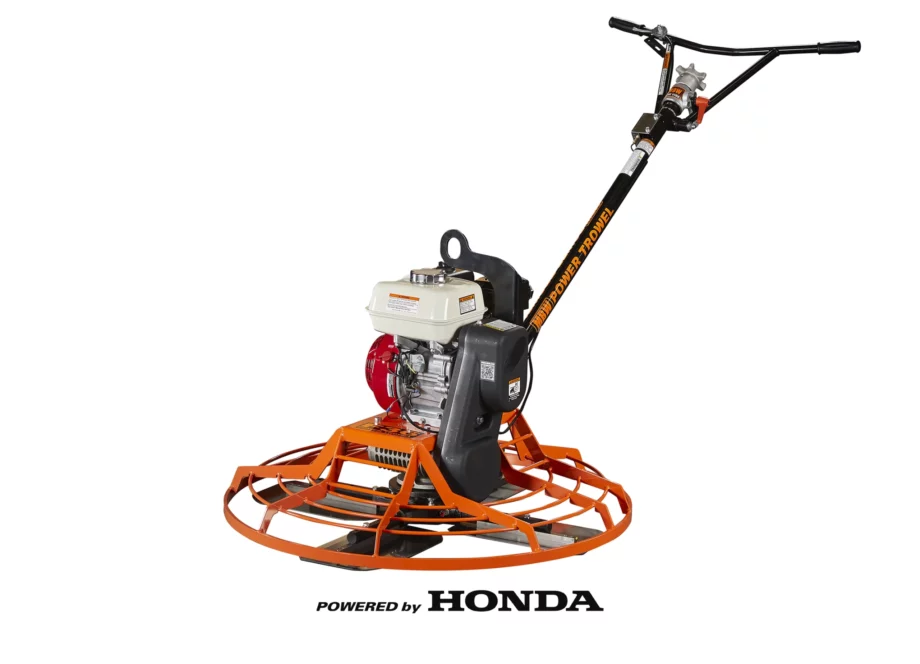

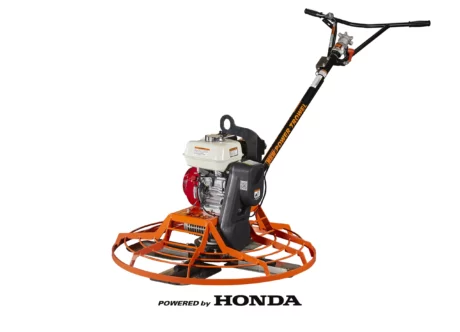

Low Vibration Handle Height

35.8" MIn – 43.3" Max

Noise Level

85-105 dBA

Handle Option

Standard Handle, Low Vibration Handle, EZ Pitch Handle, Power Pitch Handle, Power Pitch Handle Less Battery

Videos


  • Walk Behind Power Trowels
  • How To Power Trowel A 1500 Sq Ft Garage Floor
  • F36 High Torque Trowel

Product Features


Tab Placeholder Image

Specifications
F36
Engine Options Operating Weight
Honda GX160
183 lbs (83 kg)
Honda GX270
209 lbs (95 kg)
Honda GX270 High Torque
216 lbs (98 kg)
Ring Diameter
37.5 in (95 cm)
Blade Sweep Diameter
35.3 in (90 cm)
Trowel Speed
70-135 rpm
35-180 rpm (High Torque)
Low Vibration Handle Height
35.8" Min - 43.3" Max
(91-110 cm)
Noise Level
85-105 dBA

Power Trowel Brochure View File
Power Pitch Flyer DEC22 View File
F36 & F46 Manual View File
High Torque F36 & F46 Manual View File
