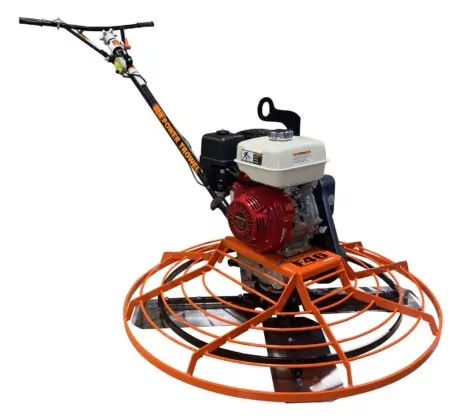

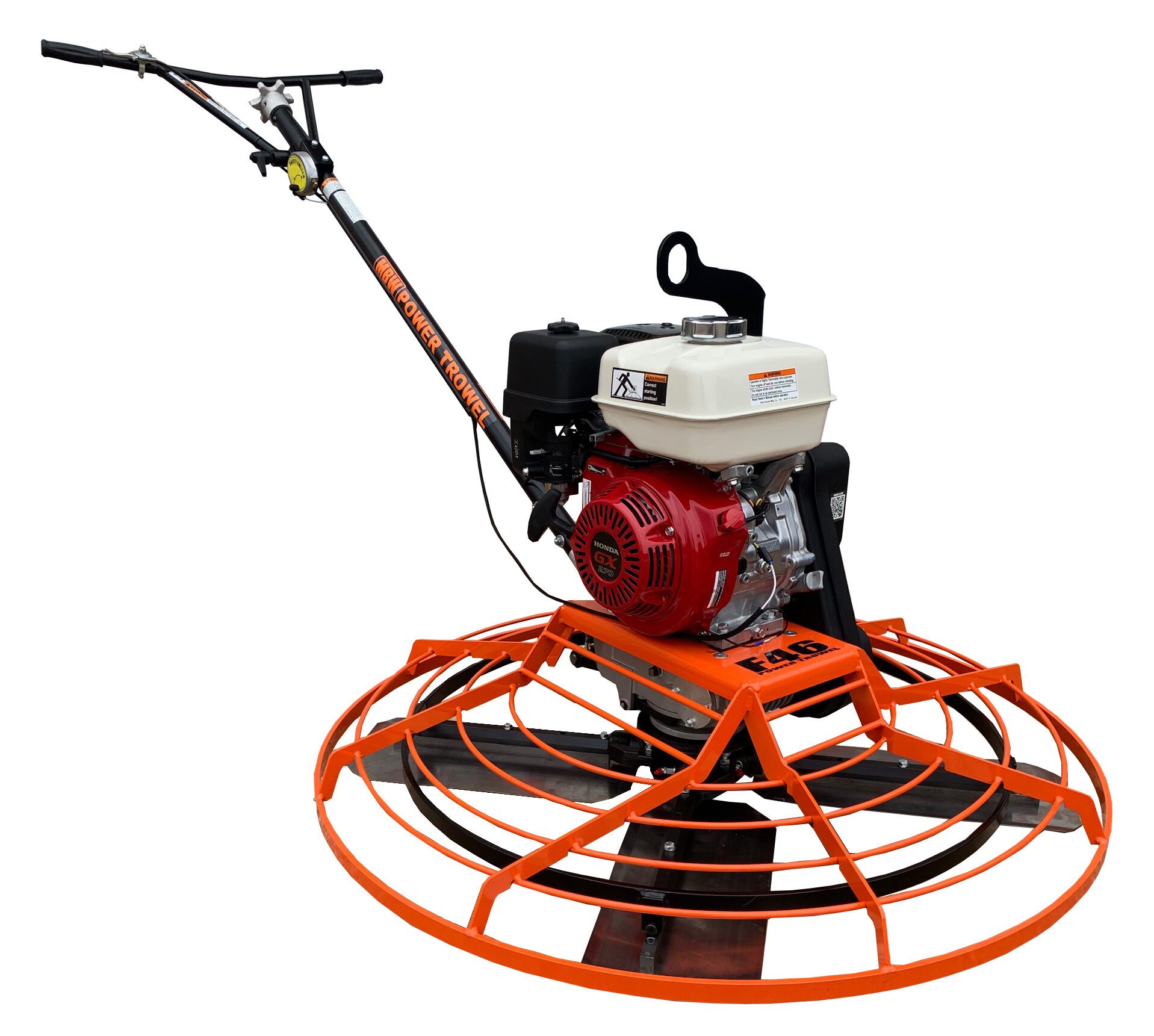

Walk-Behind Trowel F46

SKU: N/A Categories: ,

MBW’s 4-foot walk-behind trowels come in a variety of engine and handle options to suit all operators. With a gearbox machined and built in-house, these units are designed to last. Teflon inserts in the one-piece spider assembly ensure that the trowel arms will never seize up. The MBW F46 also utilizes hex trowel arms longer than the industry standard, resulting in less deflection.

Additionally, these units are offered in a High Torque version that allows for a larger window of adjustability on blade RPMs, both on the high and low ends.

The F46 comes with four handle options: Standard, Low Vibration, EZ Pitch and the new Power Pitch.

Engine Option

Honda GX270 (209 lb/95 kg), Honda GX390 (260 lb/118 kg), Honda GX390 High Torque (267 lb/121 kg)

Handle Options

EZ Pitch, Low Vibe, Power Pitch, Power Pitch Less Battery, Standard

Videos


  • Walk Behind Power Trowels
  • F36 High Torque Trowel
  • How To Power Trowel A 1500 Sq Ft Garage Floor

Product Features


Tab Placeholder Image

Specifications
F46
Engine Options Operating Weight
Honda GX270
246 lbs (112 kg)
Honda GX390
260 lbs (118 kg)
Honda GX390 High Torque
267 lbs (121 kg)
Ring Diameter
47.6 in (121 cm)
Blade Sweep Diameter
46 in (117 cm)
Trowel Speed
70-135 rpm
35-180 rpm (High Torque)
Low Vibration Handle Height
35.8" Min - 43.3" Max
(91-110 cm)
Noise Level
85-105 dBA

Power Trowel Brochure View File
Power Pitch Flyer DEC22 View File
F36 & F46 Manual View File
High Torque F36 & F46 Manual View File
