Skid Steer Roller Attachment

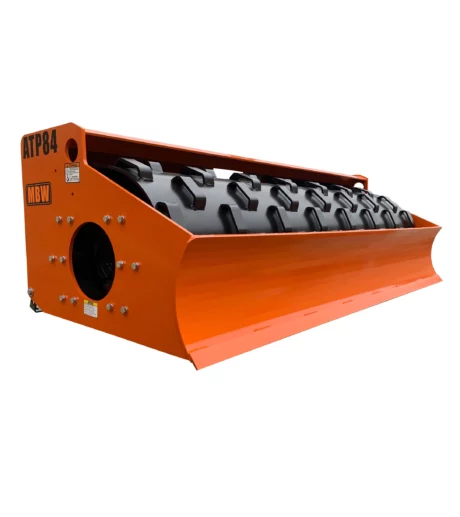

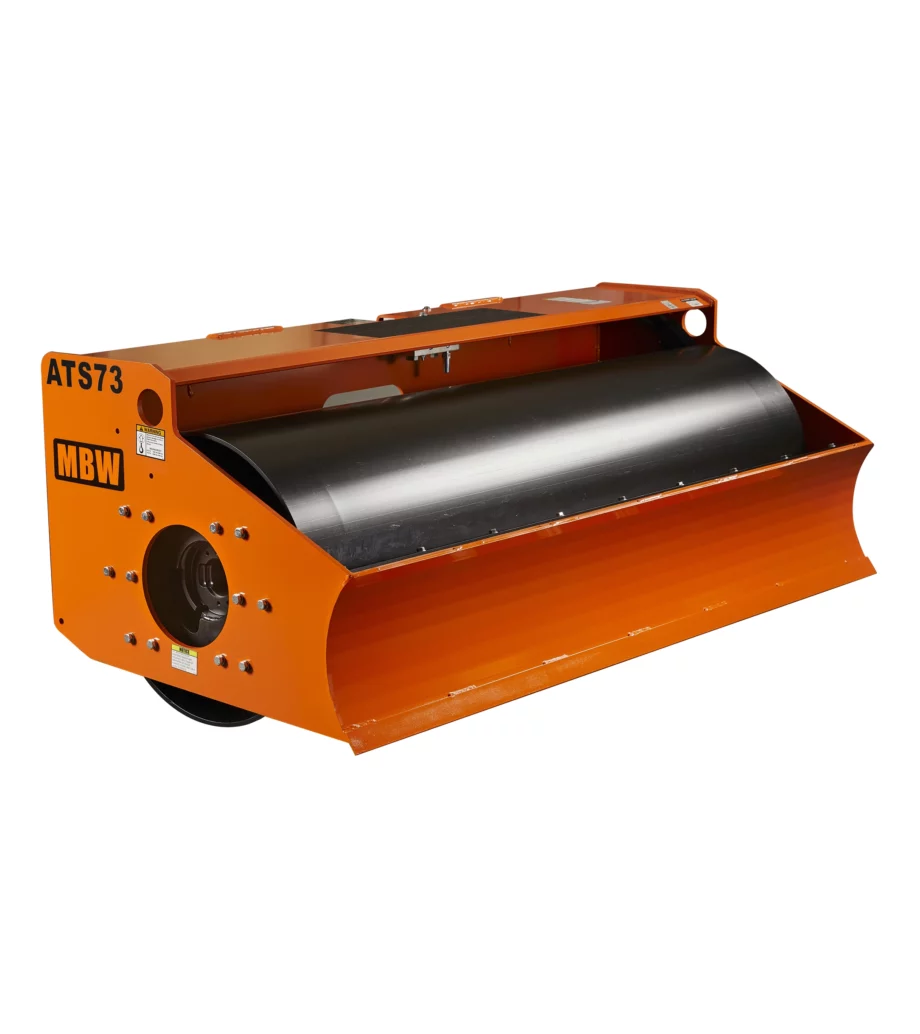

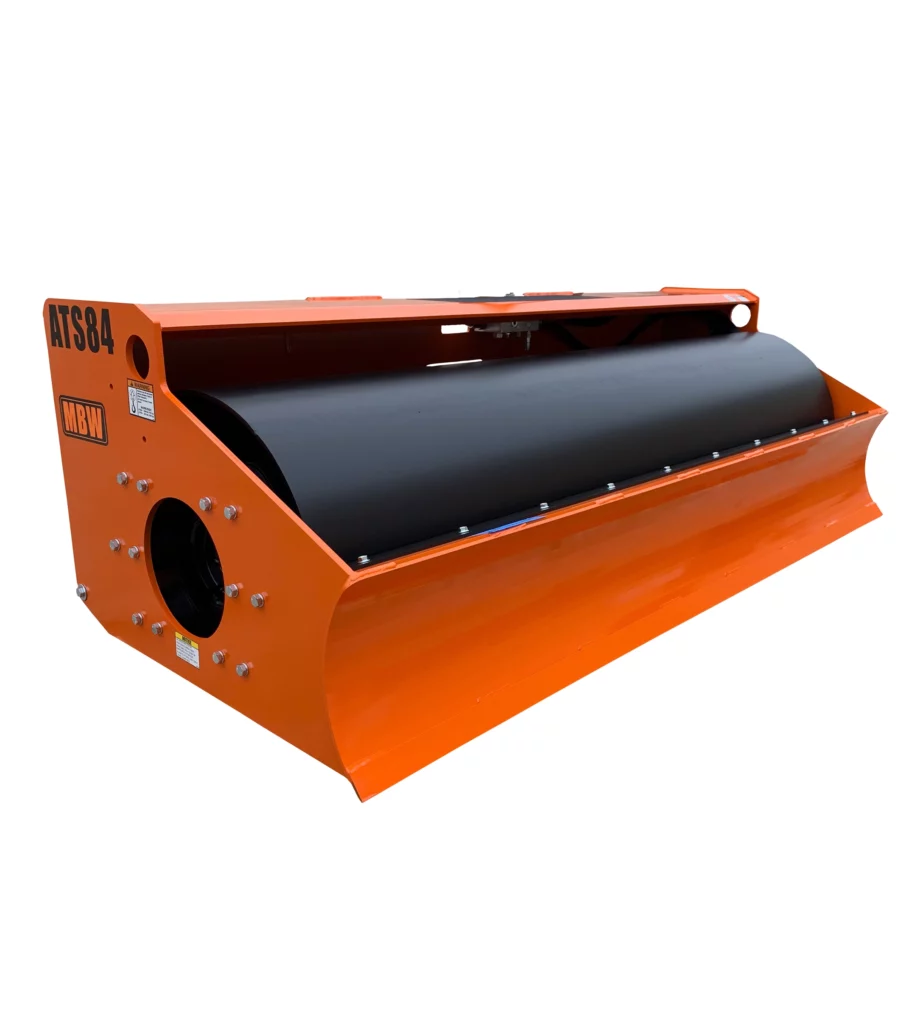

ATS (smooth drum) and ATP (padded drum) models are available in 73 and 84 inch working widths. All models feature hydraulically powered exciter systems lubricated by an oil mist design. All models feature a patented exciter shaft design that minimizes exciter shaft deflection, lower operating temperatures, and provide MBW attachments with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame minimizing transmission of vibration to the host machine. All models come with a universal quick attach system.

MBW compaction attachments for skid-steer loaders offer contractors and rental yards a cost effective, low maintenance alternative to comparatively high cost self-contained rollers.

US Patents

Weight N/A
Amplitude

.05 in (1.3 mm)

Centrifugal Force**

8850 lb (39.4 kN)

Exciter Speed

3000 rpm

Length

43.3 in (110 cm)

Height

29 in (74 cm)

Working Width

73 in (185 cm), 84 in (213 cm)

Flow Requirement

10-50 gpm (38-189 Lpm)

Pressure Requirement

1500-3000 psi (103-207 Bar)

Hydraulic Connection

1/2" Flat Face Quick Coupling

Roller Type

Smooth, Padded

Specifications
ATS/ATP73
ATS/ATP84
Length
43.3 in (110 cm)
Height/Weight
Padded 30 in (76 cm)
2080 lbs (943 kg)
Smooth 29 in (74 cm)
1940 lbs (880 kg)
Smooth 29 in (74 cm)
2260 lbs (1025 kg)
Padded 30 in (76 cm)
2410 lbs (1093 kg)
Working Width
73 in (185 cm)
84 in (213 cm)
Amplitude
.05 in (1.3 mm)
Exciter Speed
3000 rpm
Centrifugal Force
8850 lbs (39.4 kN)
9765 lbs (43.4 kN)
Flow Requirement
10-50 gpm (38-189 Lpm)
Pressure Requirement
1500-3000 psi (103-207 bar)
Hydraulic Connection
1/2" Flat Face Quick Coupling

( ) Metric Measurements


Roller Attachments Product Brochure View File
ATS/ATP Roller Manual View File
